07KT98 ABB Basic Unit

Name: 07KT98 ABB Basic Unit
Rating: 4.5 (90 reviews)

Condition:

Brand New & Original

Availability:

In Stock

Delivery Time:

5-7 Days

EXW Price:

$3700

Payment:

T/T, Full Payment Before Shipping

Request a Quote

Product Description Technical Download

Manufacturer	ABB
Module/Order Number	07KT98

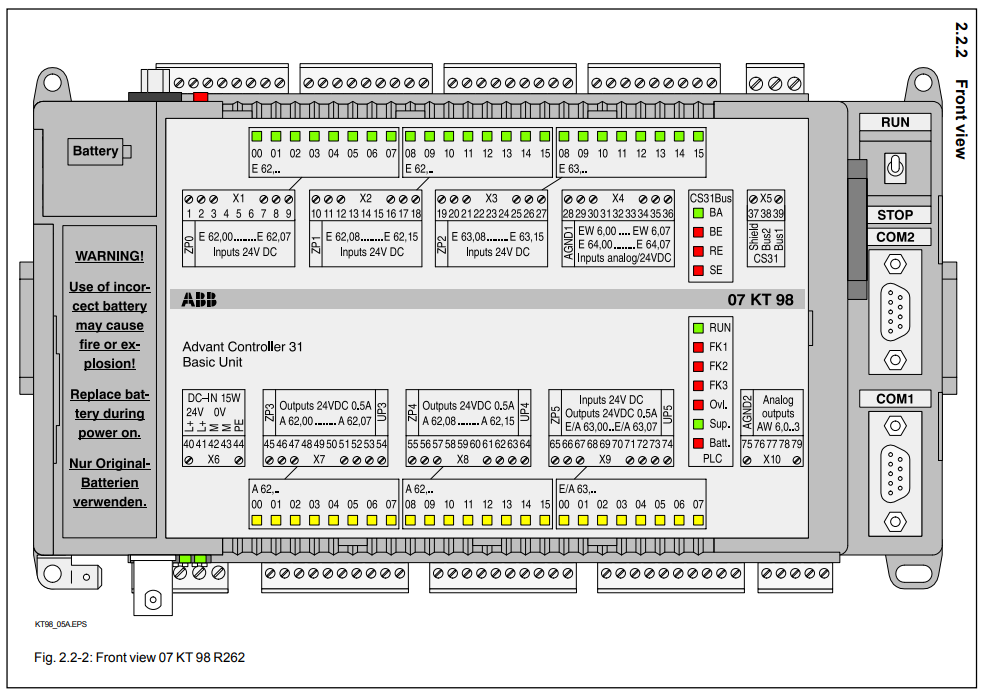

Description	Advant Controller 31, Basic unit with max. 1 MB user program + 1 MB user data + 256 kB RETAIN, CS31 system bus
Country of origin	Sweden/Germany/US
Dimension & Net Weight	24x14x8.5cm, 1.6kg
Packing Weight	4kg

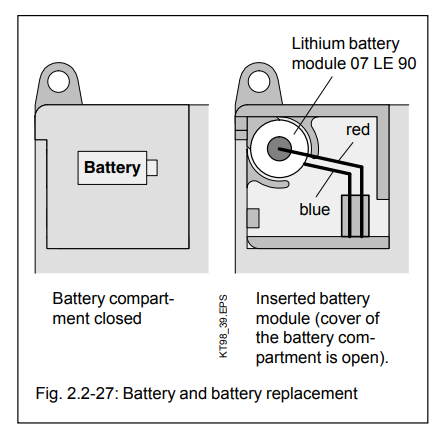

Function & Details	The 07KT98 Base Unit is powered by 24 V DC and can be used as: 1. A bus master in the Advant Controller 31 distributed automation system 2. A slave (remote processor) in the Advant Controller 31 distributed automation system 3. A standalone base unit. Key Features: • 24 digital inputs with LED display • 16 digital transistor outputs with LED display • 8 digital inputs/outputs with LED display • 8 individually configurable analog inputs, 4 individually configurable analog outputs • 2 counters with a counting frequency of up to 50 kHz, configurable in 7 different operating modes • 1 CS31 system bus interface for system expansion • 1 interface for connecting a communication module (e.g., 07KP90) • 2 serial interfaces COM1 and COM2, which can be used as MODBUS interfaces for programming and test functions or as freely programmable interfaces • Real-time clock • LEDs for operating status and error messages • Removable screw terminals • The device can be screwed or snapped onto a DIN rail • A 07LE90 lithium battery can be inserted into the battery compartment to store and back up additional data contained in the RAM and the backup time and date • Run/Stop switch for starting and stopping program execution • Extensive diagnostic functions: including basic unit self-diagnostics, CS31 system bus, and connected modules • Integrated Flash EPROM for storing programs and data • Interchangeable Smart Media Card 07 MC 90 for storing user data or updating the operating system or PLC program
Application	Ordering Information: GJR5253100R0120 Basic unit 07KT98 R0120 (+ PROFIBUS-DP) GJR5253100R0220 Basic unit 07KT98 R0220 (+ PROFIBUS-DP) GJR5253100R0160 Basic unit 07KT98 R0160 (+ ARCNET) GJR5253100R0260 Basic unit 07KT98 R0260 (+ ARCNET) GJR5253100R0162 Basic unit 07KT98 R0162 (+ ARCNET + PROFIBUS-DP) GJR5253100R0262 Basic unit 07KT98 R0262 (+ ARCNET + PROFIBUS-DP) GJR5253100R0268 Basic unit 07KT98 R0268 (+ ARCNET + CANopen) GJR5253100R0270 Basic unit 07KT98 R0270 (+ Ethernet) GJR5253100R0272 Basic unit 07KT98 R0272 (+ Ethernet + PROFIBUS-DP) GJR5253100R0276 Basic unit 07KT98 R0276 (+ Ethernet + ARCNET) GJR5253100R0277 Basic unit 07KT98 R0277 (+ Ethernet + Ethernet) GJR5253100R0278 Basic unit 07KT98 R0278 (+ Ethernet + CANopen) GJR5253100R0280 Basic unit 07KT98 R0280 (+ CANopen) GJR5253100R3160 Basic unit 07KT98 R0260 (+ ARCNET) GJR5250700R0001 Battery module 07LE90 Precautions when project planning and startup: • The unit is programmed using AC31 programming software, which runs on an IBM-compatible commercial PC (see the documentation for programming system 907 AC 1131). • Online program modification allows for quick modification of user programs without interrupting operation. • Data is saved during power cycle, with backup via an internal battery and/or Flash EPROM. • When using the PROFIBUS DP interface, connection to the CS31 system bus is via a 3-pole removable terminal block. • All AC31 devices, whether master or slave, are connected via a twisted-pair bus. The connections are as follows: – One bus wire is connected via the BUS1 terminals of all devices to be connected to the CS31 system bus. – The other bus wire is connected via the BUS2 terminals of all devices to be connected to the CS31 system bus.

Tags:

ABB 07KT98 Datasheet.pdf
